Database Procedure Proxies





How do database procedure proxies work?

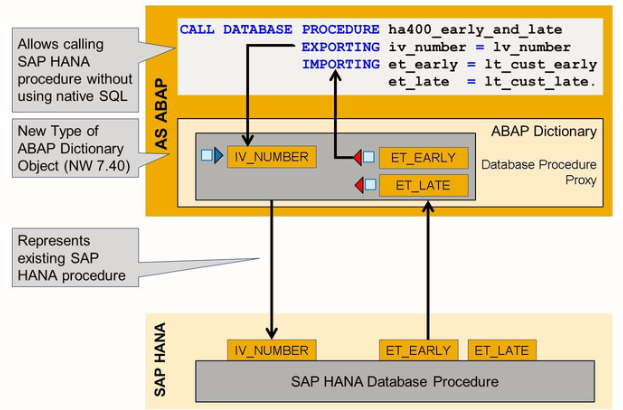

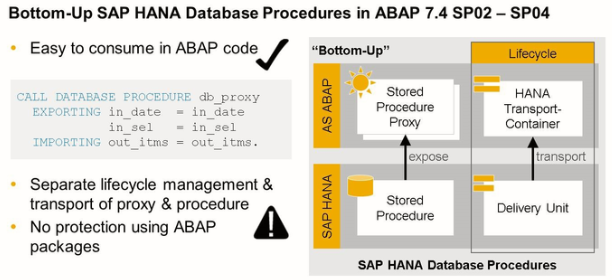

Database procedure proxies are a new type of ABAP dictionary object introduced with ABAP 7.40. They represent, inside the ABAP system, a database procedure that exists outside and independent of an ABAP system.



They have import and export parameters that are mapped to the parameters of the procedure.



A database procedure proxy allows you to call the database procedure it represents without using Native SQL. A new ABAP statement CALL DATABASE PROCEDURE is introduced for this purpose.



Database Procedure proxies in ADT

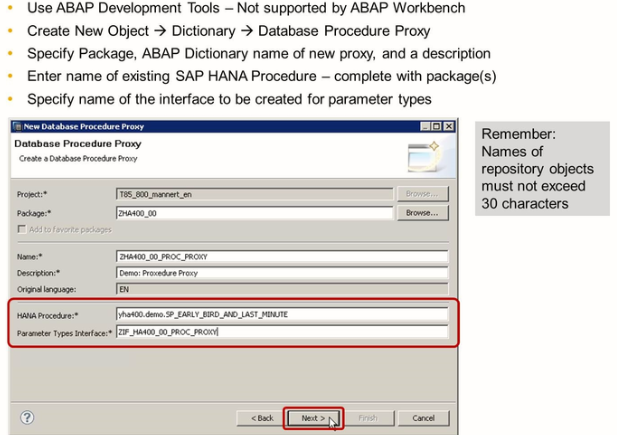

To create a database procedure proxy, you must use ADT. Database procedure proxies are not supported by the ABAP workbench.



In the ABAP project, open the context menu and choose NEW ->Other or New -> Other ABAP Repository Object. Open the Dictionary folder and select Database Procedure proxy. Specify the following: -

• The ABAP Package to which the proxy is to belong
• The ABAP name of the database procedure proxy and its description

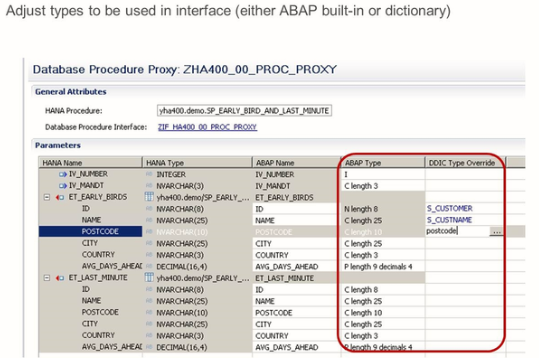

• The name of an ABAP OO interface to be created. This interface holds the definition of the database procedure proxy parameters with their types, mapped to ABAP Dictionary types.
• The full name, including the SAP HANA content package name, of the database procedure for which a proxy is to be created.





Calling Database Procedure Proxies in ABAP

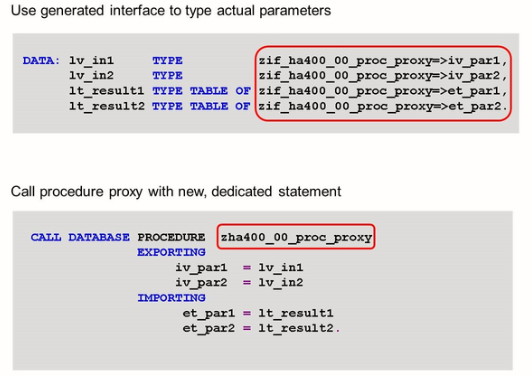

To call a stored procedure using a database procedure proxy, use the new statement CALL DATABASE PROCEDURE. The syntax is like function calls.
